3.5 Inch VA LCD Display Parallel interface 6-bit and 4-bit broken code display Driver IC HT1621 Display mode: TBM/Negative/Transmissive

This 3.5 Inch VA LCD Display presents a versatile and reliable visual solution for a diverse range of applications. It features a parallel interface, which facilitates rapid and efficient data transfer, allowing for seamless integration into various electronic systems. The display is capable of 6-bit and 4-bit broken code display, providing flexibility in presenting different types of information, whether it's detailed numerical data or more simplistic coded messages. Driven by the dependable Driver IC HT1621, it ensures stable and consistent display performance, minimizing the risk of glitches or disruptions. With multiple display modes - TBM, Negative, and Transmissive - users can choose the most suitable option based on the ambient lighting conditions and the specific requirements of their application. The TBM mode offers a unique visual effect, the Negative mode enhances contrast in certain scenarios, and the Transmissive mode provides excellent visibility with its backlight, making it suitable for use in both brightly lit and dimly lit environments.

• Parallel interface for quick and seamless data connectivity.

• Capability of 6-bit and 4-bit broken code display for flexible information presentation.

• Driver IC HT1621 for reliable and stable display operation.

• Multiple display modes (TBM, Negative, Transmissive) to adapt to various lighting and application needs.

• In automotive instrument clusters, the 3.5-inch size can fit well within the dashboard layout. The parallel interface can communicate rapidly with the vehicle's electronic control unit to display real-time speed, fuel level, and engine temperature. The 6-bit and 4-bit broken code display can be used to show diagnostic codes or warning messages. The different display modes, especially the Transmissive mode, ensure visibility in both day and night driving conditions, and the stable display driven by HT1621 provides accurate and reliable information to the driver.

• For industrial control panels in factories, the display can present production line status, machine settings, and error codes. The parallel interface allows for fast data exchange with the control system, and the 6-bit and 4-bit broken code display can handle complex production-related information. The Negative mode can be used to highlight errors or critical settings, while the Transmissive mode is suitable for use in well-lit factory floors. The Driver IC HT1621 ensures stable operation in the industrial environment.

• In home entertainment systems such as audio/video receivers, the 3.5-inch VA LCD display can show volume levels, input sources, and track information. The parallel interface can connect to the main device for quick updates, and the 6-bit and 4-bit broken code display can be used to display special functions or settings. The TBM mode can add an aesthetic touch to the display, and the Transmissive mode ensures readability in the living room lighting. The reliable display driven by HT1621 enhances the overall user experience.

Product Parameter:

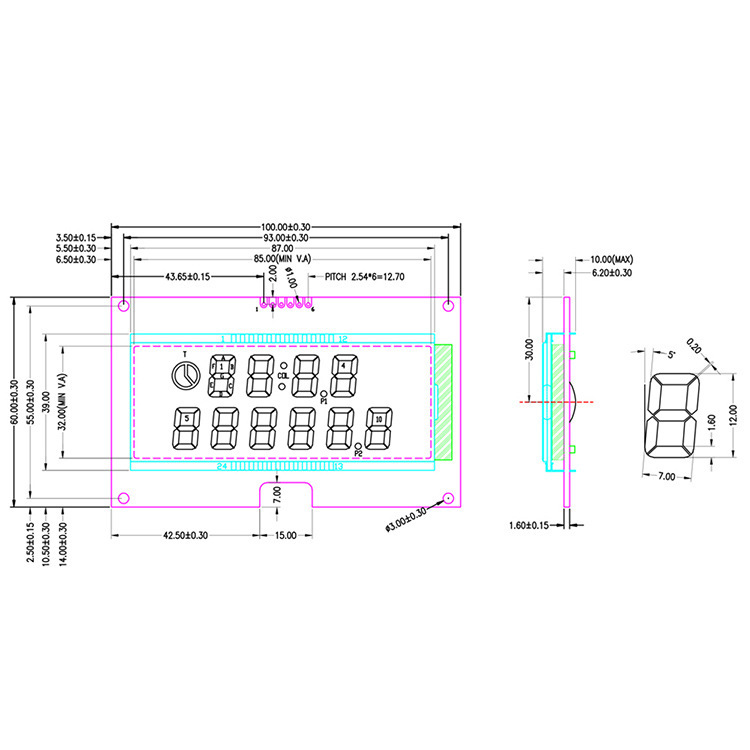

Drawing:
